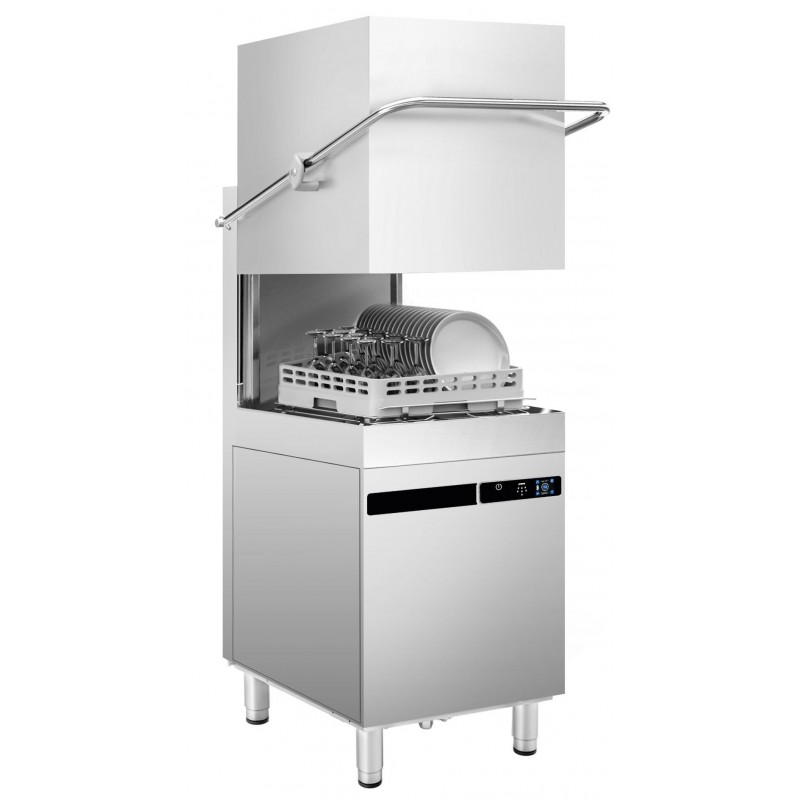

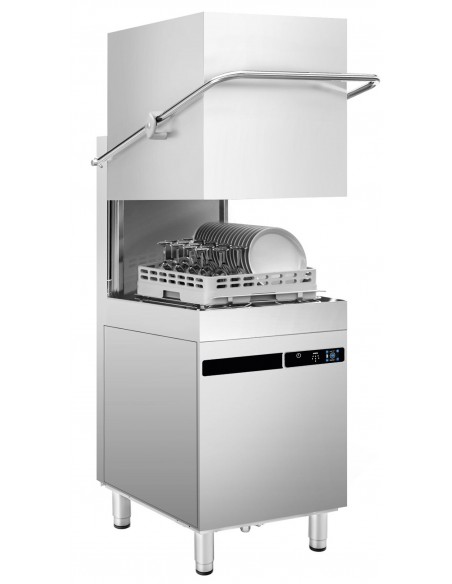

Premium Passthrough Commercial Dishwasher + Drain Pump 500 x 500 Basket – High-Capacity, Touchscreen 9.6kw

Premium Passthrough Commercial Dishwasher – High-Capacity, Touchscreen-Controlled, Built for Performance. 9.66 kW with Detergent, Rinse Aid & Drain Pump. 2 Years Warranty

Boost kitchen productivity and hygiene with the Touchscreen Passthrough Dishwasher — a powerful commercial dishwasher designed for busy catering environments, restaurants, hotels and cafés. Intuitive controls, robust construction and automatic dosing make this dishwasher a reliable choice for high-volume dishwashing needs.

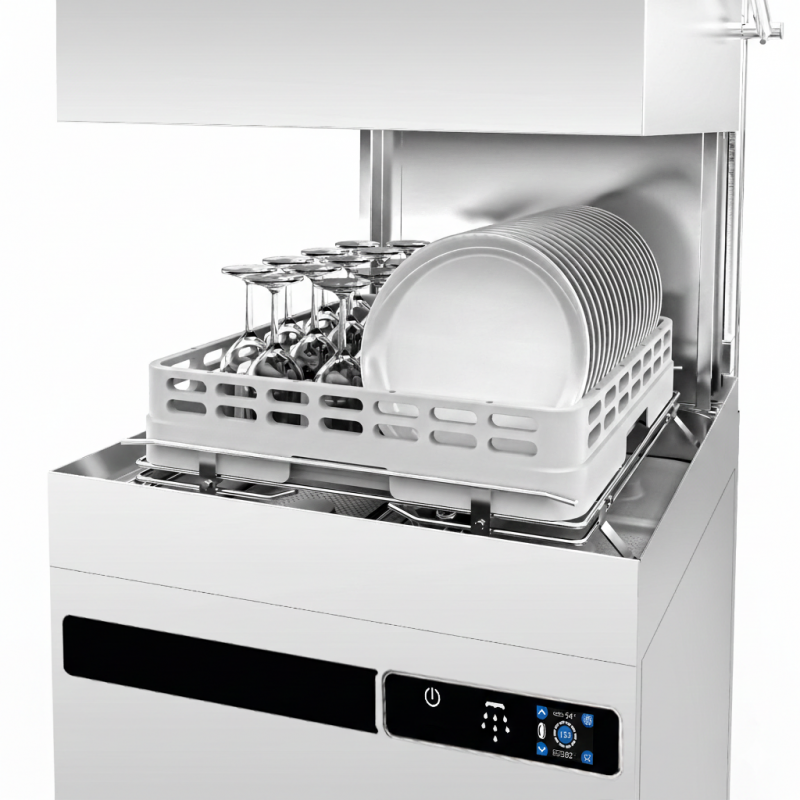

Featuring a user-friendly touchscreen interface, operators can easily select from multiple wash programs and monitor remaining cycle time at a glance — improving efficiency and reducing training time. The built-in detergent and rinse aid supply ensures consistent cleaning performance, while the integrated drain pump helps efficiently remove wastewater over a height difference into the drainage connection.

Designed for thorough cleaning, the dishwasher includes two wash arms and two clear rinse arms, thermostatic temperature control and height-adjustable feet for stable, customised installation. The rugged AISI 304 stainless steel body and heating elements deliver long-lasting durability and hygiene suited to commercial kitchens.

Key Features:

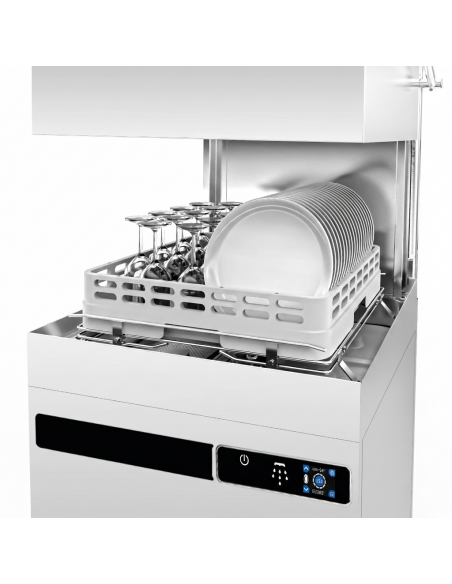

• Intuitive touchscreen operation with remaining cycle time display for convenience and control.

• Automatic detergent and rinse aid dosing for consistent wash quality.

• Integrated drain pump for effective wastewater removal without external pumping.

• Two wash and two rinse arms for thorough and efficient cleaning.

• High-quality stainless steel construction (AISI 304) for durability and hygiene.

• Four selectable programs to accommodate different levels of soiling.

• 2 Years Warranty

• Supplied with plate, glass and cutlery baskets — ready for operation.

• CE marking as proof of conformity with EU regulatory standards
• For smooth rinsing, the appliance and components should be descaled with a connected descaler.

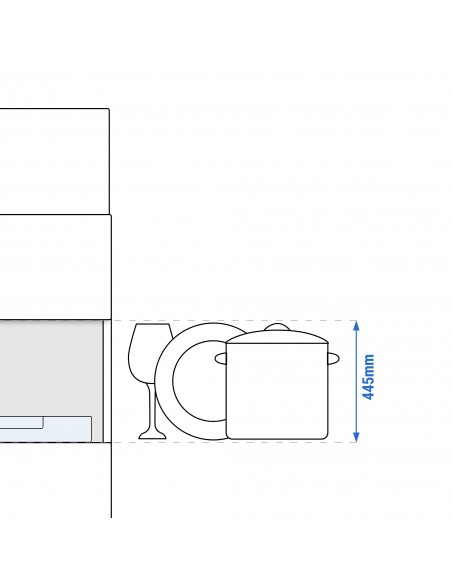

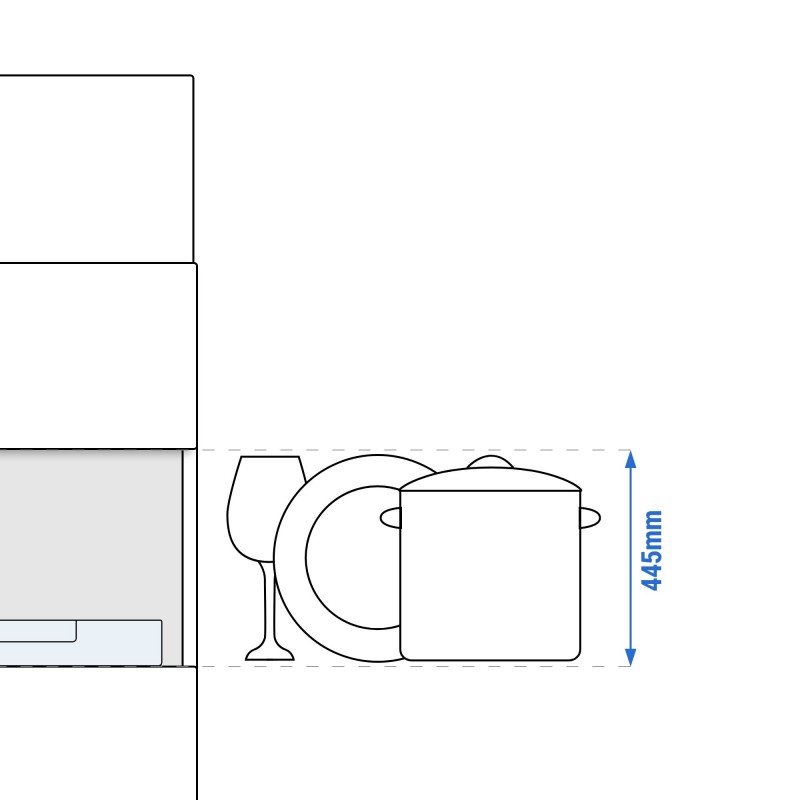

With a 445 mm maximum insertion height, this dishwasher handles a wide range of crockery, glassware and cutlery sizes with ease. Built for commercial kitchens that demand speed and reliability, it delivers excellent cleaning results even during peak service periods.

With rinse aid, detergent and rinse aid pump

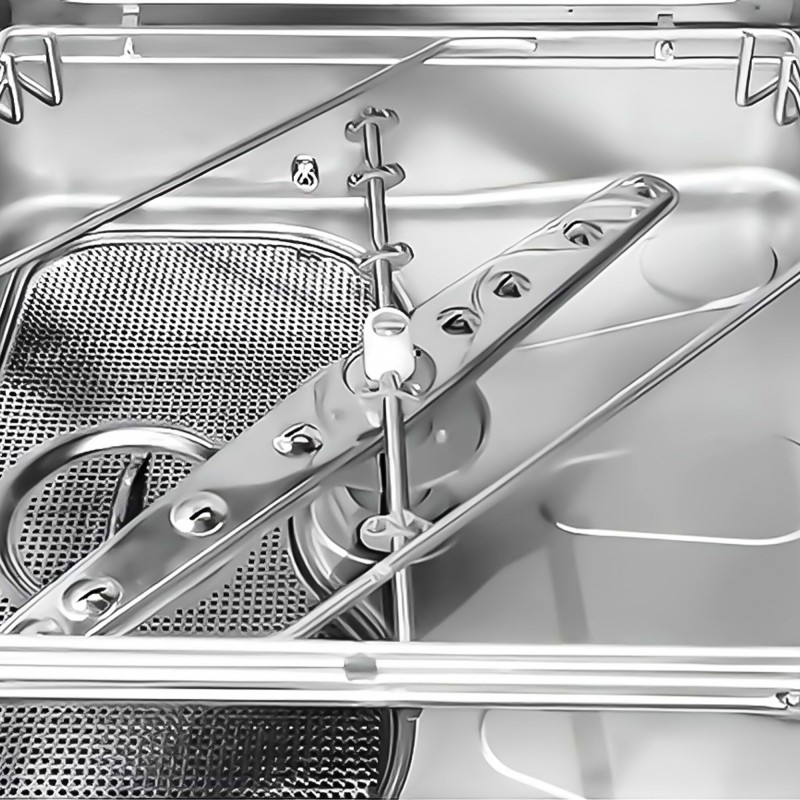

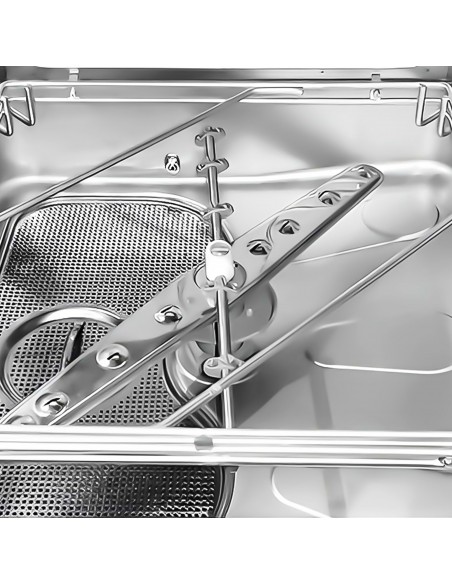

2 Wash arms for effective cleaning

2 Clear rinse arms

Thermostats for temperature control

Height-adjustable feet

Ease of use: 4 Programs

Superior rinsing

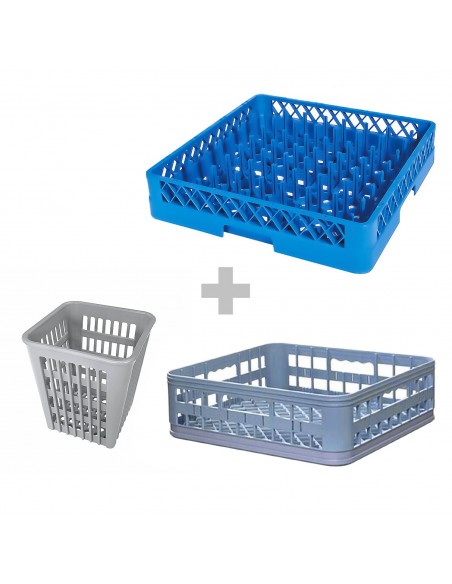

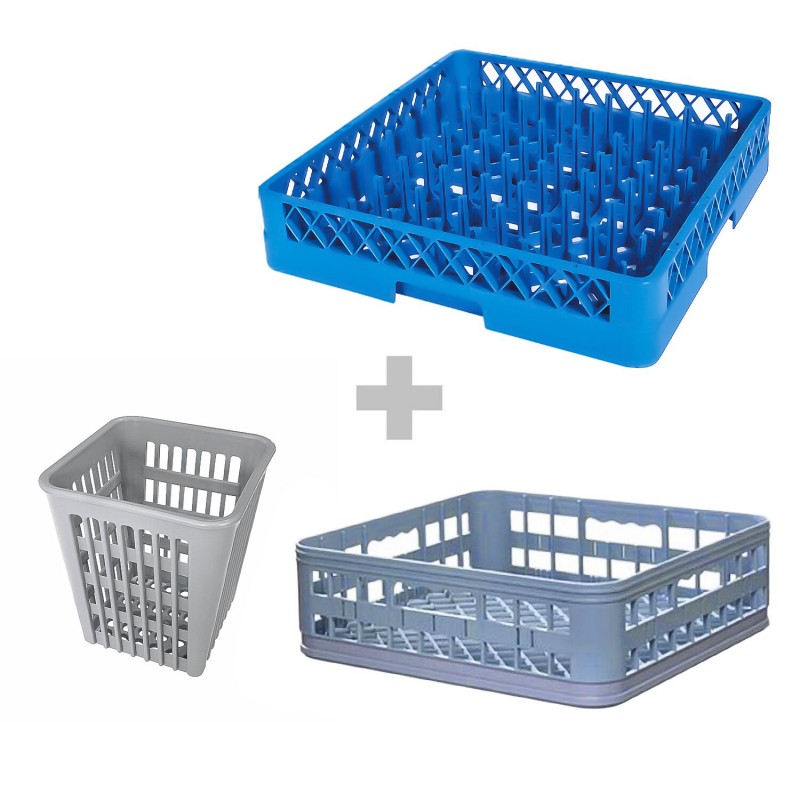

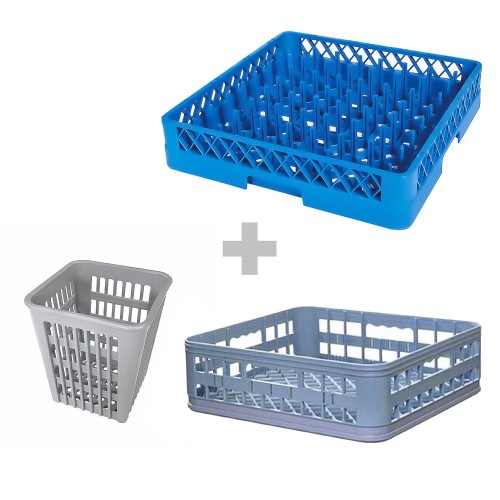

1x plate basket

1x glass basket

1x cutlery basket

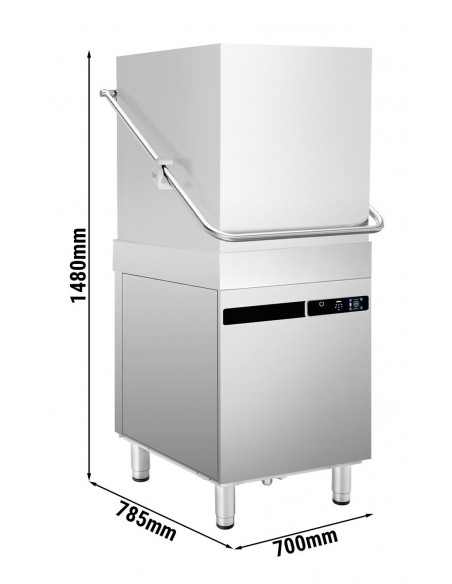

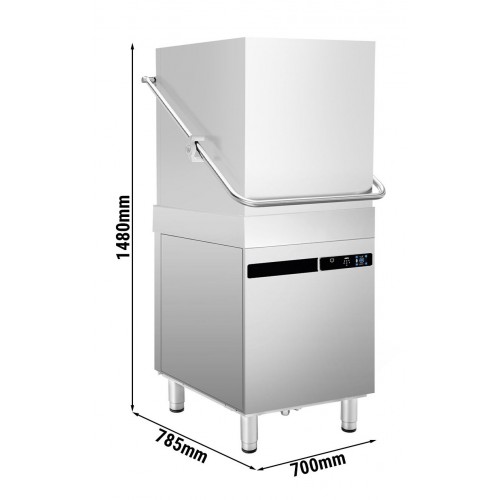

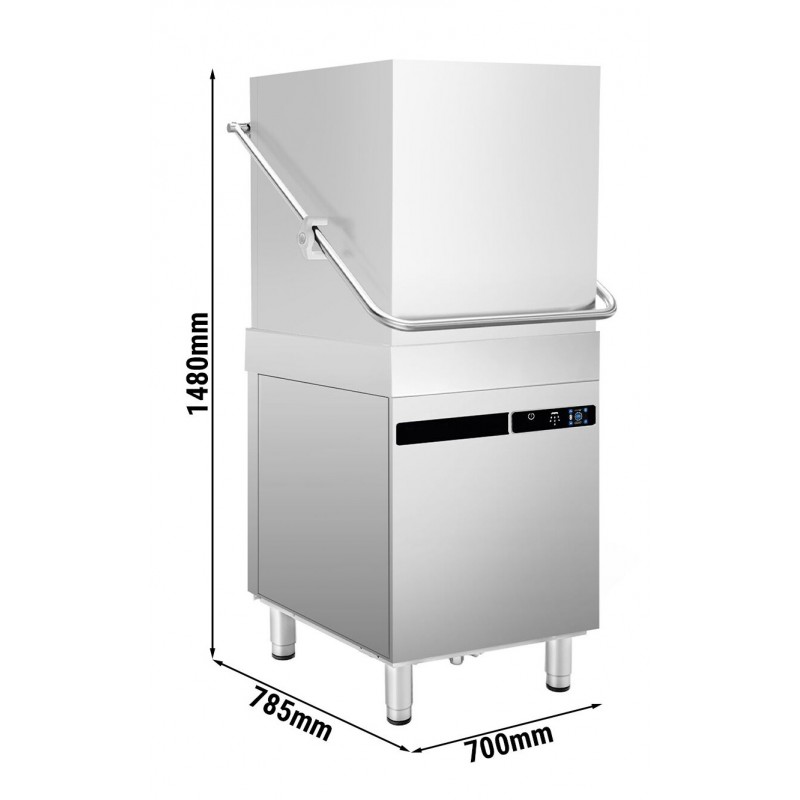

Dimensions

Width 700 mm

Depth 785 mm

Height 1.480 mm

Height with open lid 1.960 mm

Basket dimensions

Width 500 mm

Depth 500 mm

Rack height

Insertion height 445 mm

Water connection

Water inlet R 3/4"

Water outlet Ø 42 mm

Details

Washing temperature 55 - 60 °C

Purge temperature 80 °C - 85 °C

Water pressure Min. 2 bar - max. 4 bar

Water hardness 0 - 10

Max. Crockery height 445 mm

Connected load

Connection Electrical

Power 9,66 kW

Voltage 400V / 3N/PE

Frequency 50 Hz

Weight 111 kg
