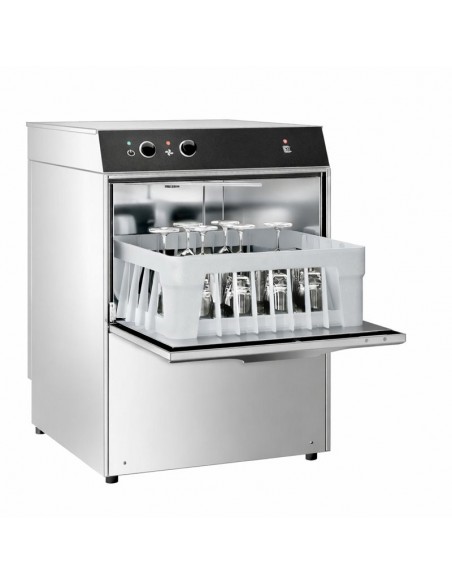

Commercial Glasswasher - Double‑Walled - Drain Pump, Rinse Aid Pump – 2.77 kW

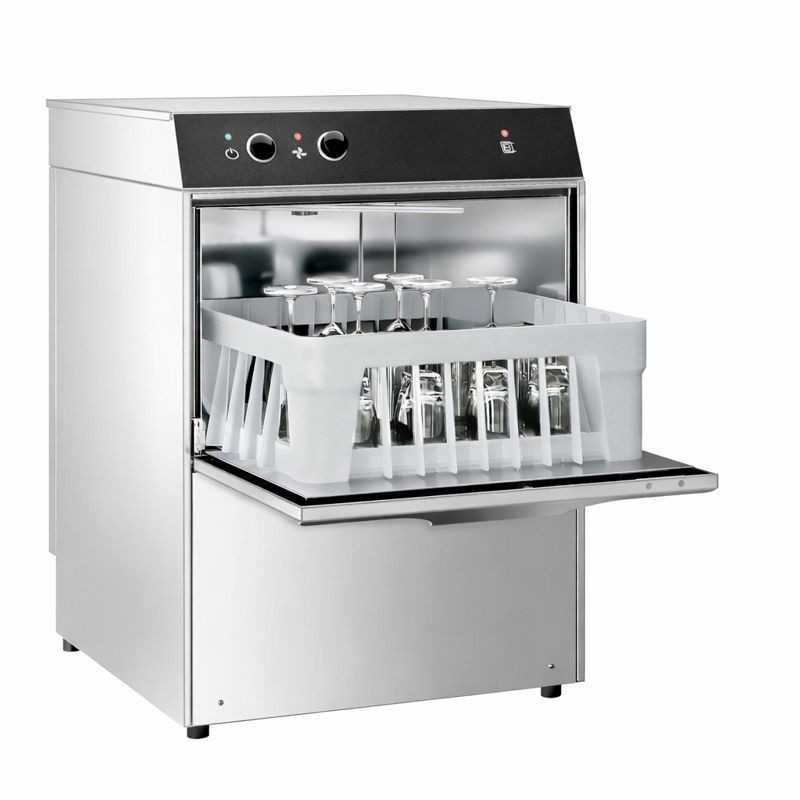

Compact Undercounter Glasswasher with Drain Pump – Energy-Efficient, Quiet & High-Performance

This compact commercial glasswasher is designed for professional environments where space is limited but performance cannot be compromised. Ideal for bars, cafés, pubs, restaurants and hospitality venues, it delivers excellent cleaning results while operating exceptionally quietly and efficiently.

Thanks to high-quality insulation at the top, the unit offers reduced energy consumption, while its advanced wash system ensures powerful and consistent cleaning performance. The integrated drain pump allows dirty water to be discharged over height differences, making this dishwasher suitable for a wide range of installations, including sites without low-level drainage.

With electromechanical controls requiring no servicing, a rinse aid pump, and a double filter system, this dishwasher is built for reliability, hygiene and ease of use in demanding commercial settings.

Key Product Advantages

• Highly energy-efficient due to superior insulation

• Exceptionally quiet operation – ideal for front-of-house use

• High washing performance with excellent cleaning results

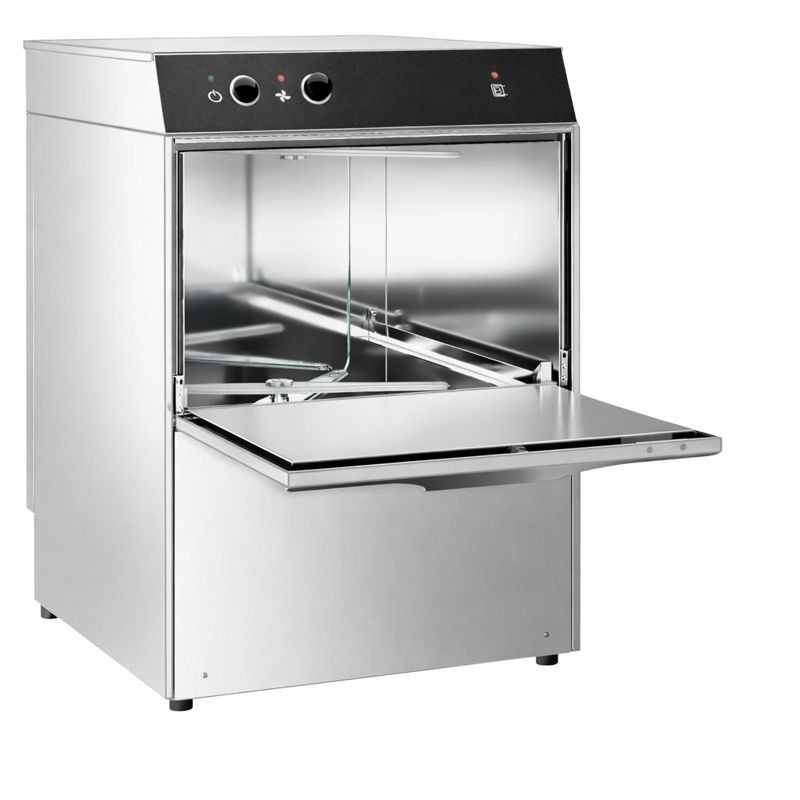

• Compact undercounter design for small spaces

• Integrated drain pump for flexible installation

• Built-in rinse aid pump for improved drying results

• Integrated door safety mechanism

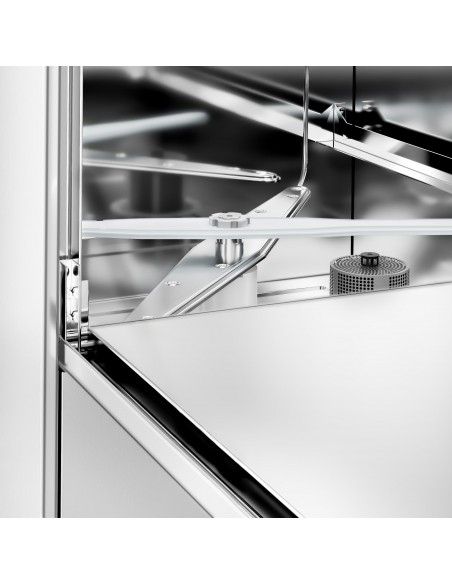

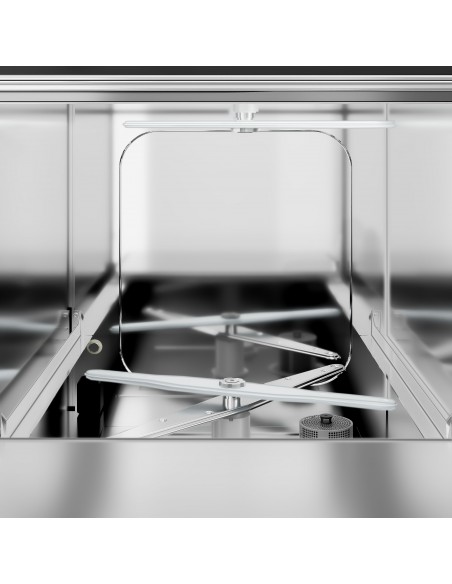

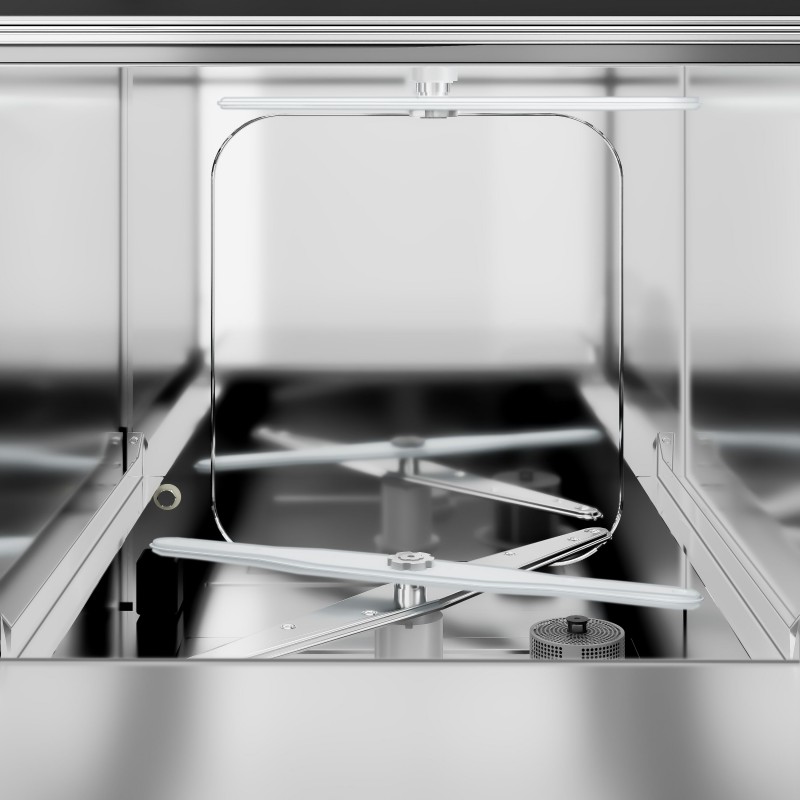

• Top and bottom rinse arms plus dedicated wash arm

• Designed for professional glass and dish washing

Construction & Build Quality

• Manufactured from high-quality stainless steel

• Robust, durable construction for commercial use

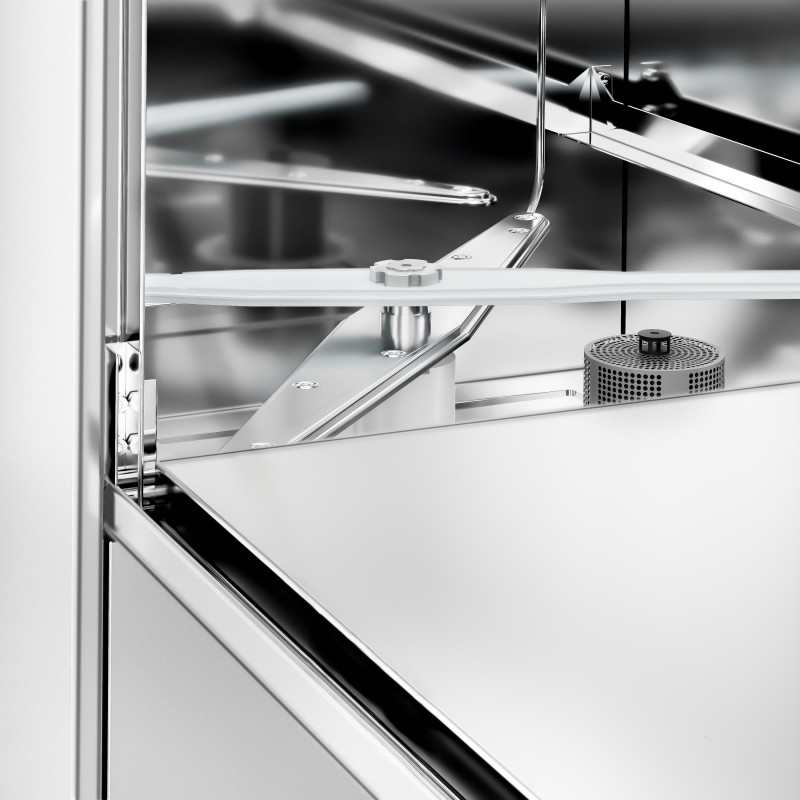

• Rotating, non-clogging wash and rinse jets

• Cleaner tank with double filter system

Technology & Operation

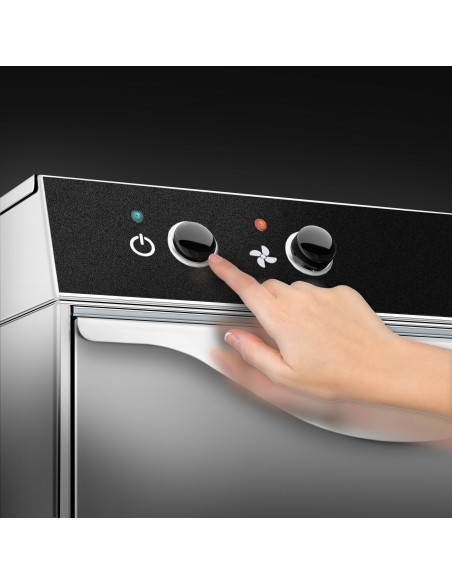

• Electromechanical controls – no servicing required

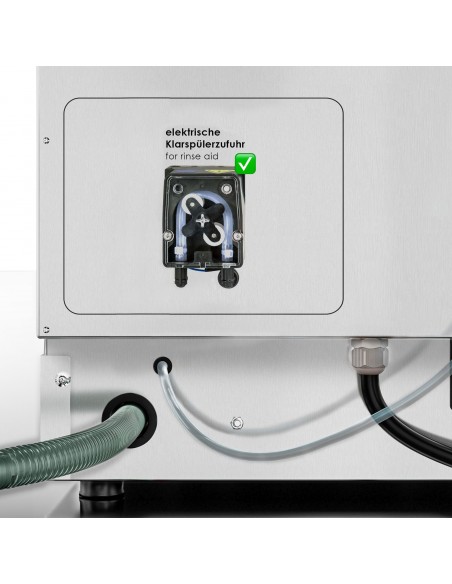

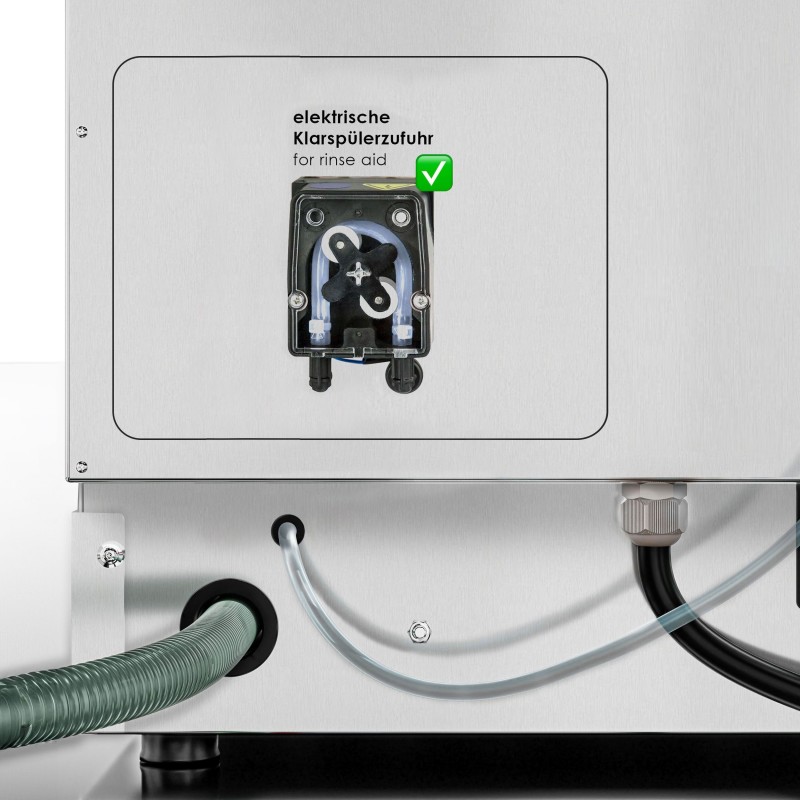

• Hydraulic rinse aid dosing device

• Drain pump capable of pumping wastewater over height differences

• Compatible with hot or cold water connection
  (Best results achieved with hot water connection)

Dimensions & Capacity

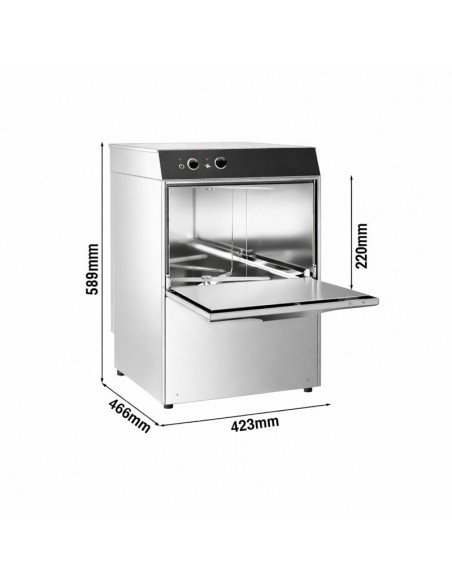

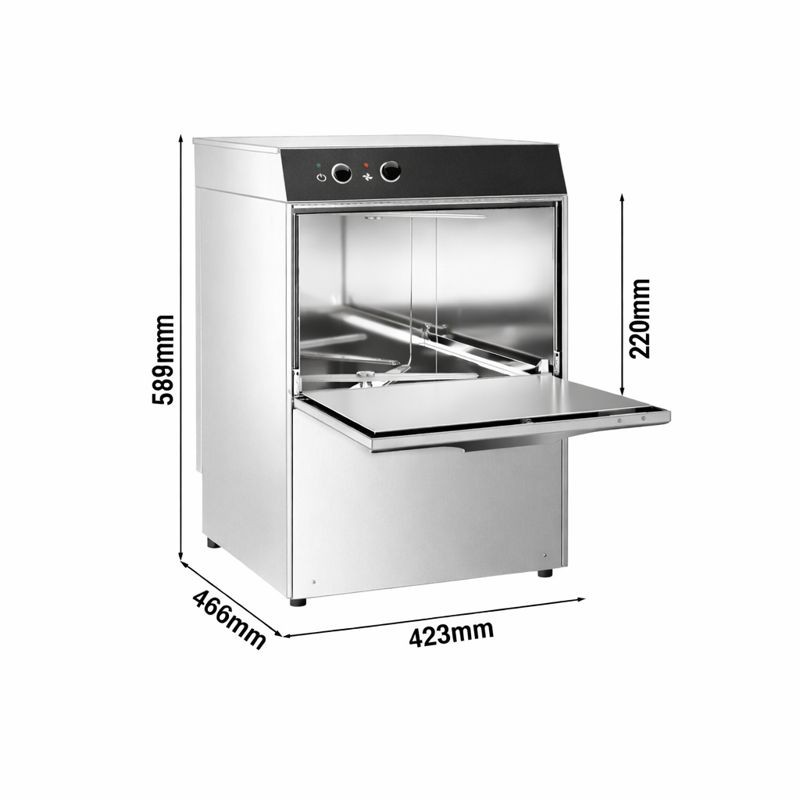

• External dimensions (W × D × H): 423 × 466 × 589 mm

• Basket size: 350 × 350 mm

• Rack height: 220 mm

• Maximum glass height: 205 mm

• Tank capacity: 11 litres

• Weight: 35 kg

Performance Data

• Cycle time: 120 seconds

• Output: up to 30 baskets per hour

• Washing temperature: 50–60°C

• Rinse temperature: 82–85°C

• Recommended inlet water temperature: 55°C

Electrical & Water Connection

• Power: 2.77 kW

• Voltage: 230V

• Phase: 1N/PE

• Frequency: 50 Hz

• Water inlet: R 3/4"

• Water drain: 1¾"

• Supplied with Schuko plug

Scope of Delivery

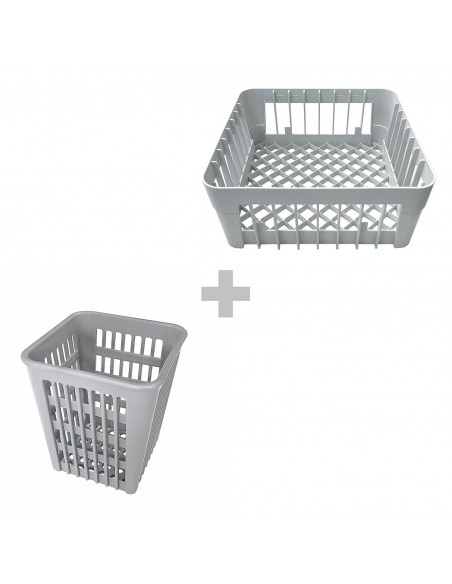

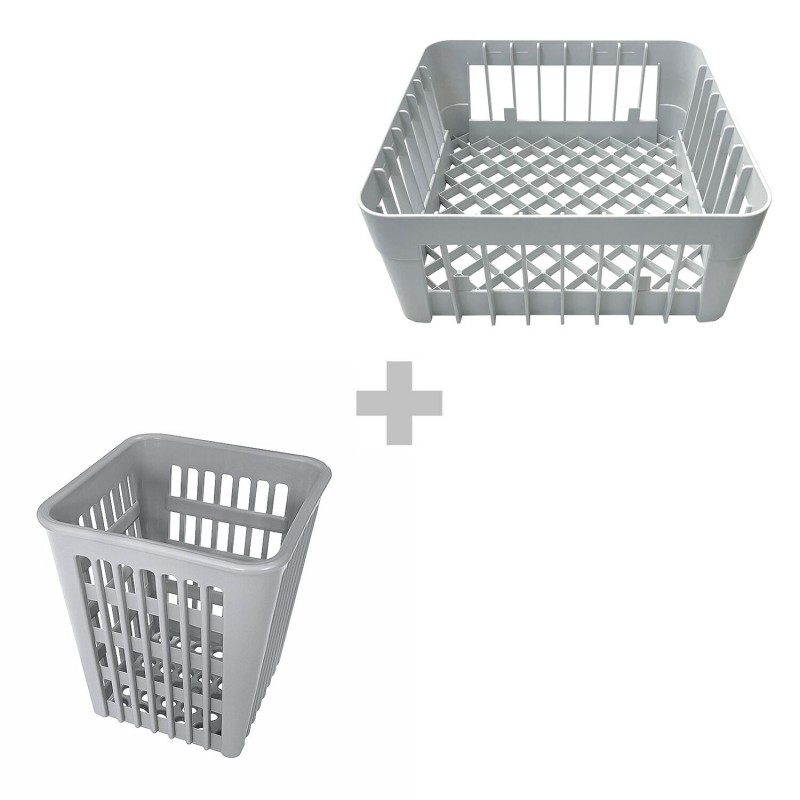

• 1 × glass basket

• 1 × cutlery basket

• 1 × Schuko EU converter plug

Important Notes

• Only suitable for chlorine-free detergents

• For optimal results, use with a connected water softener/descaler

• Descaler cartridges should be regenerated after approx. 1,500–2,000 litres, depending on water hardness

• Detailed setup and maintenance instructions available in the Downloads & Video sections

🛡 Compliance & Standards

• Manufactured in accordance with relevant hygiene and safety standards

• CE marked

• Materials comply with European food-contact regulations
