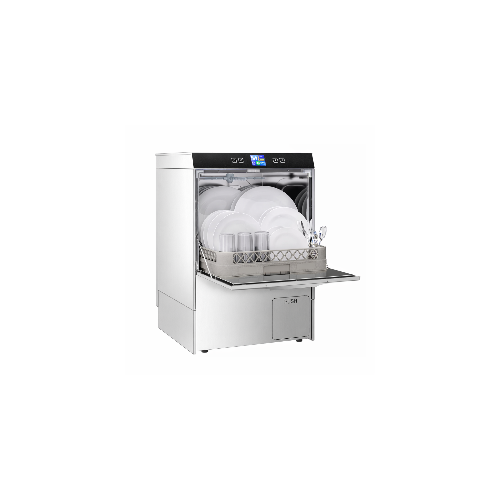

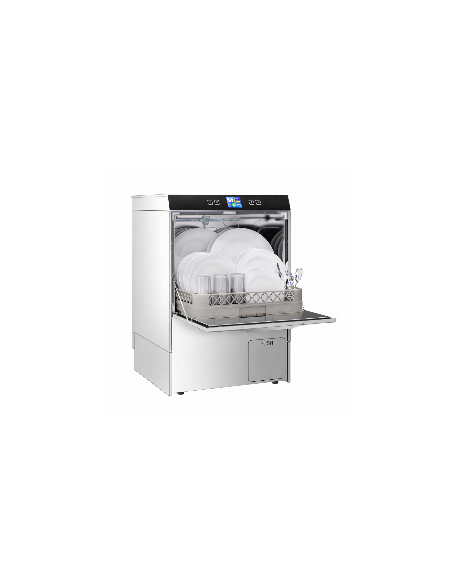

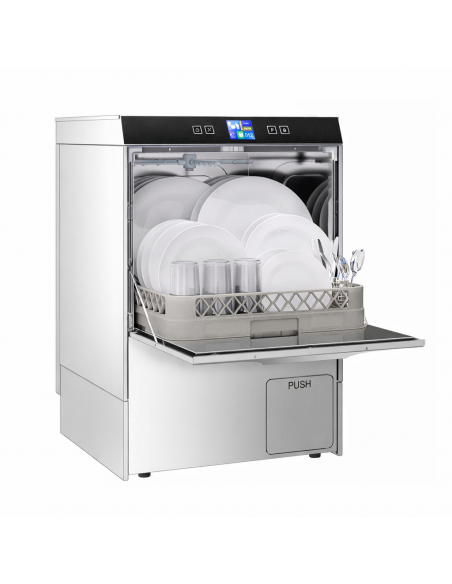

Commercial Dishwasher 540 plates/hour 500mm basket Digital Drain pump Detergent pump Rinse aid pump 230V | Stalwart DA-EMP500SDF

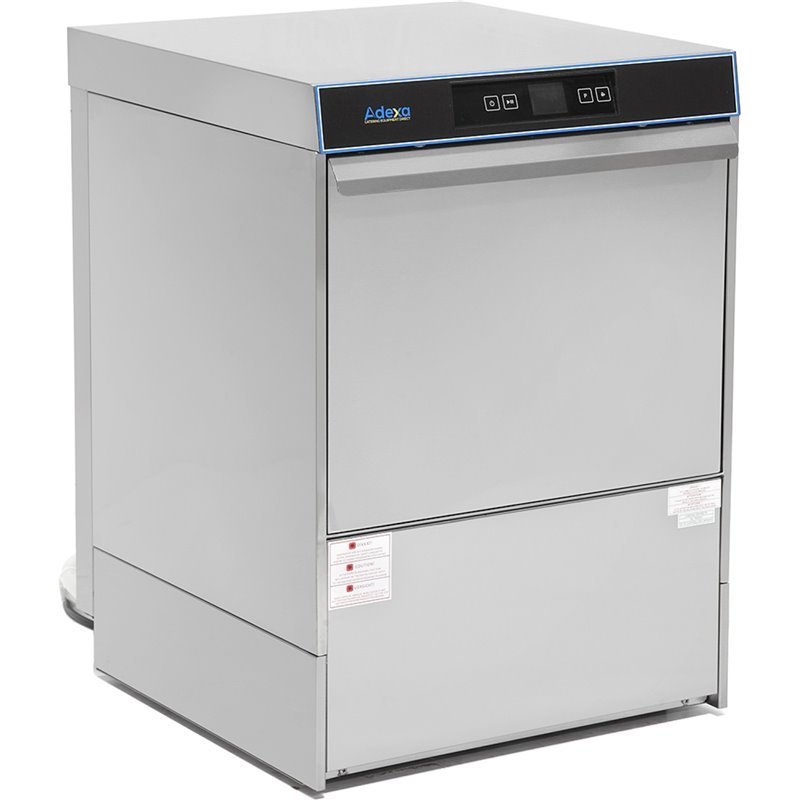

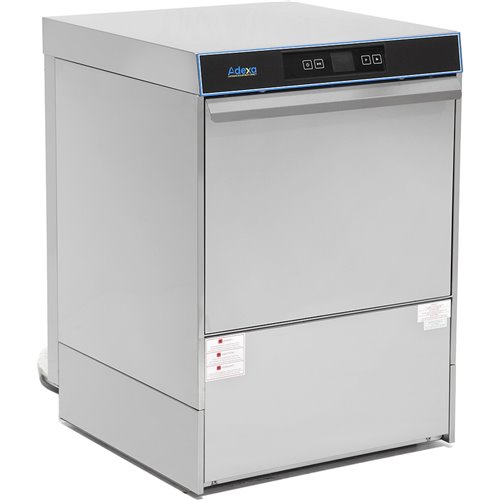

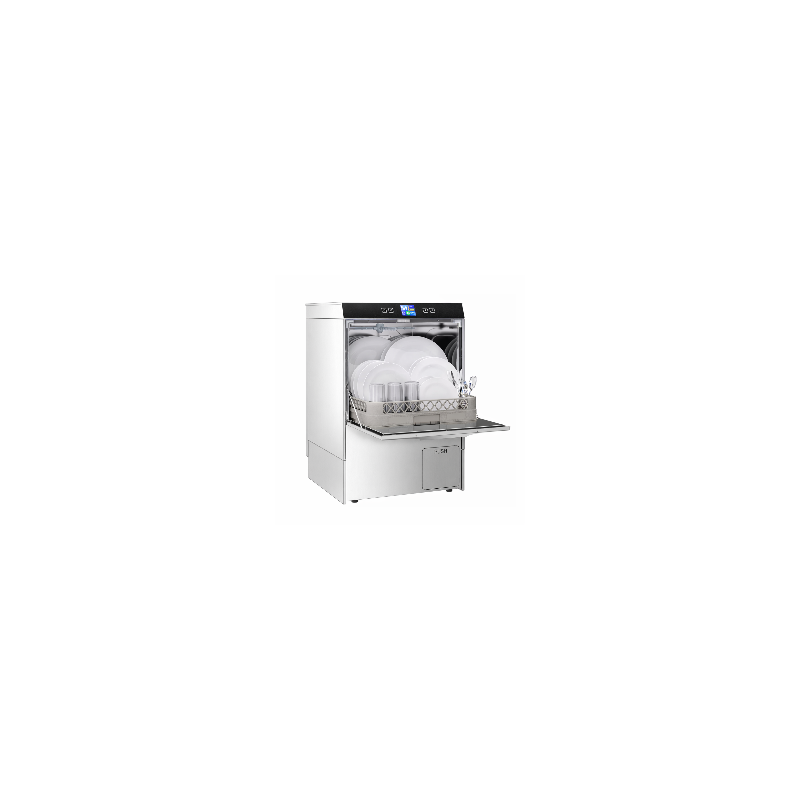

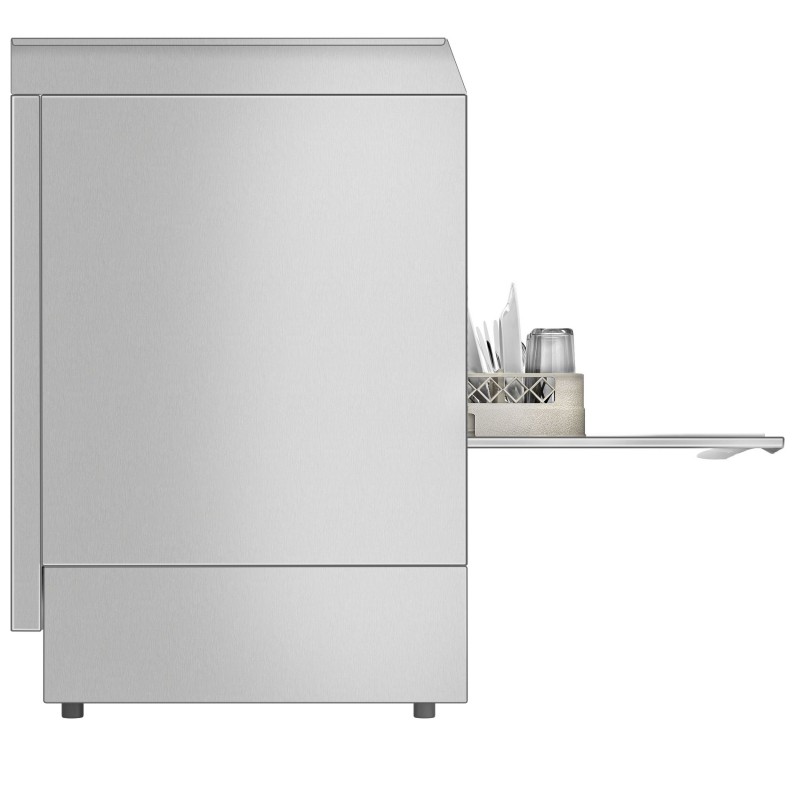

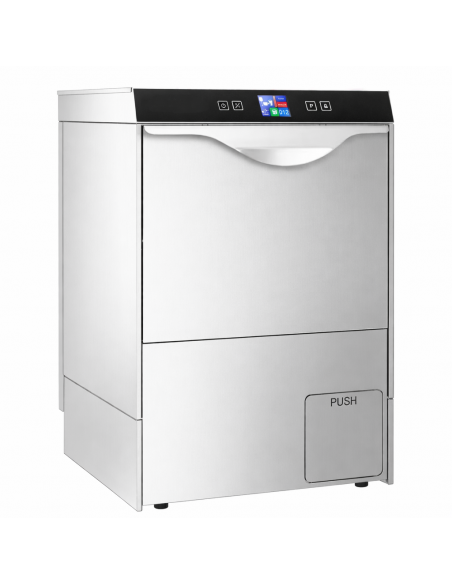

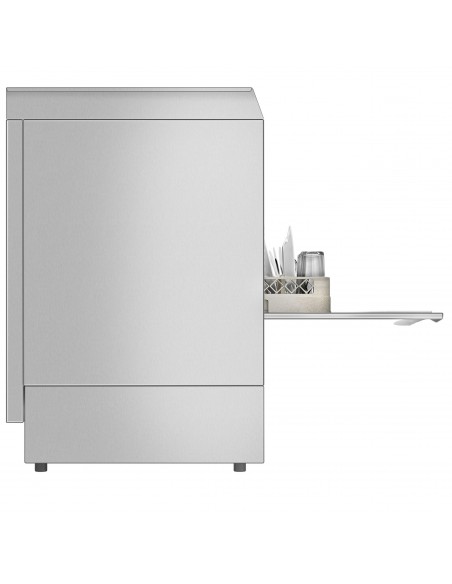

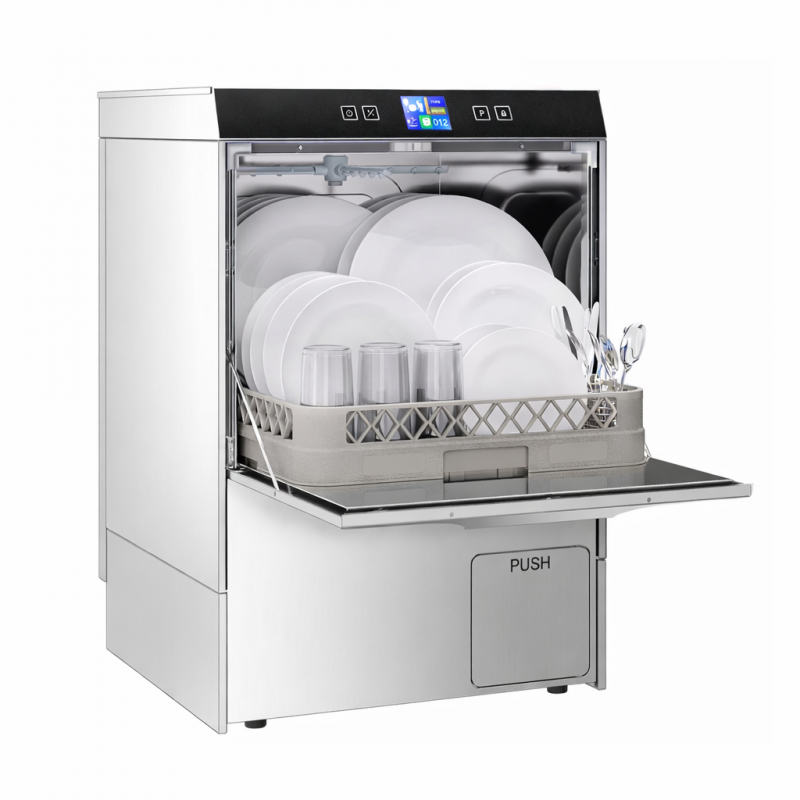

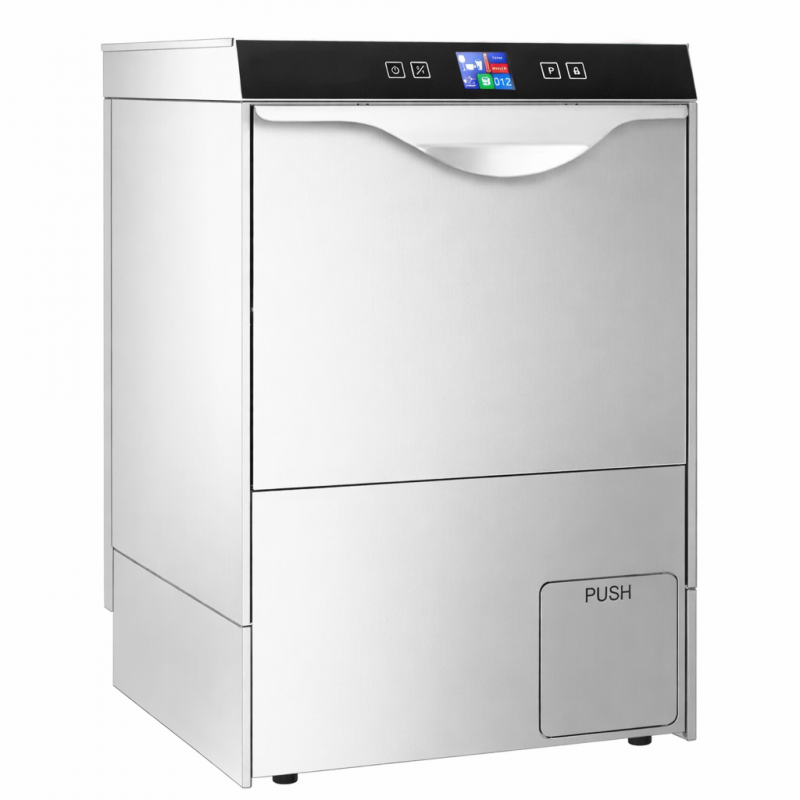

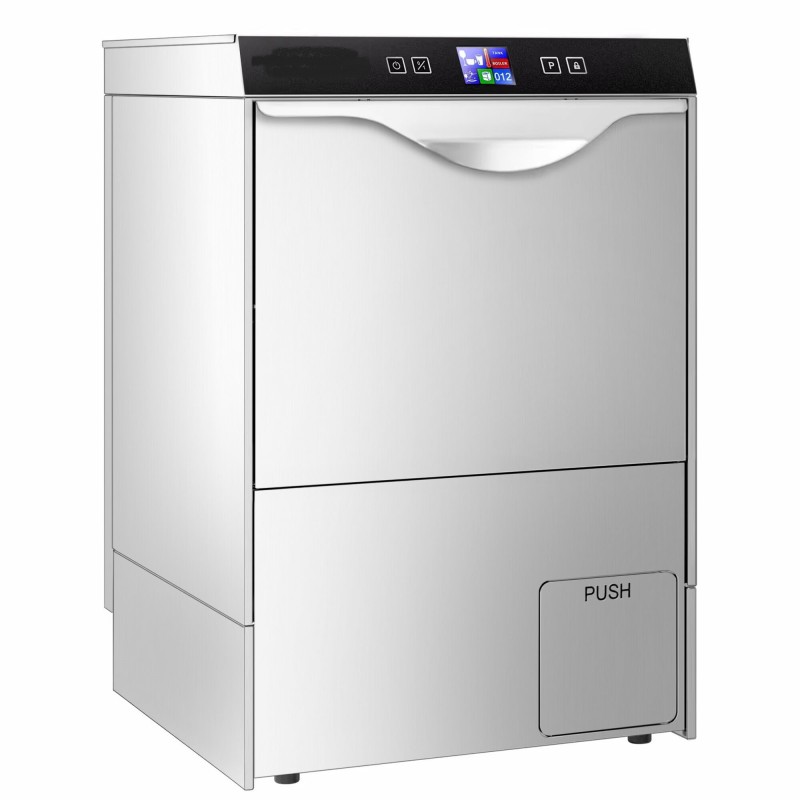

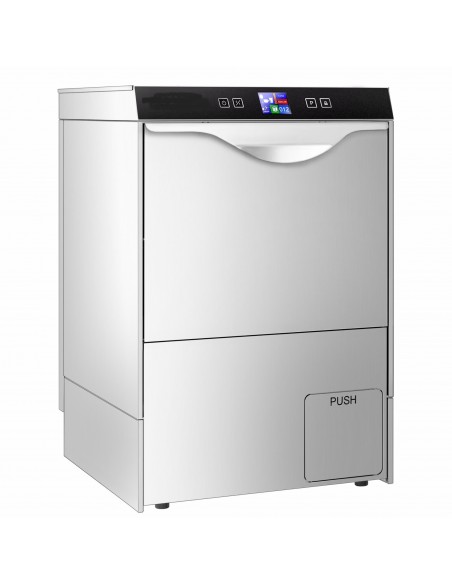

Commercial Undercounter Dishwasher with Drain Pump – 500 Plates/Hour

Designed for busy professional kitchens, this compact commercial undercounter dishwasher delivers powerful, reliable cleaning performance while saving valuable floor space. Equipped with an integrated drain pump, it easily pumps wastewater over height differences to the main drainage connection, making it ideal for flexible installation environments.

With robust stainless steel construction, intuitive manual controls, and multiple wash programmes, this dishwasher is perfectly suited for restaurants, cafés, bars, pubs, and catering operations requiring fast turnaround and consistent hygiene standards.

Key Product Advantages

• Integrated drain pump – pumps dirty water to elevated wastewater connections

• Substructure design – ideal for undercounter installation

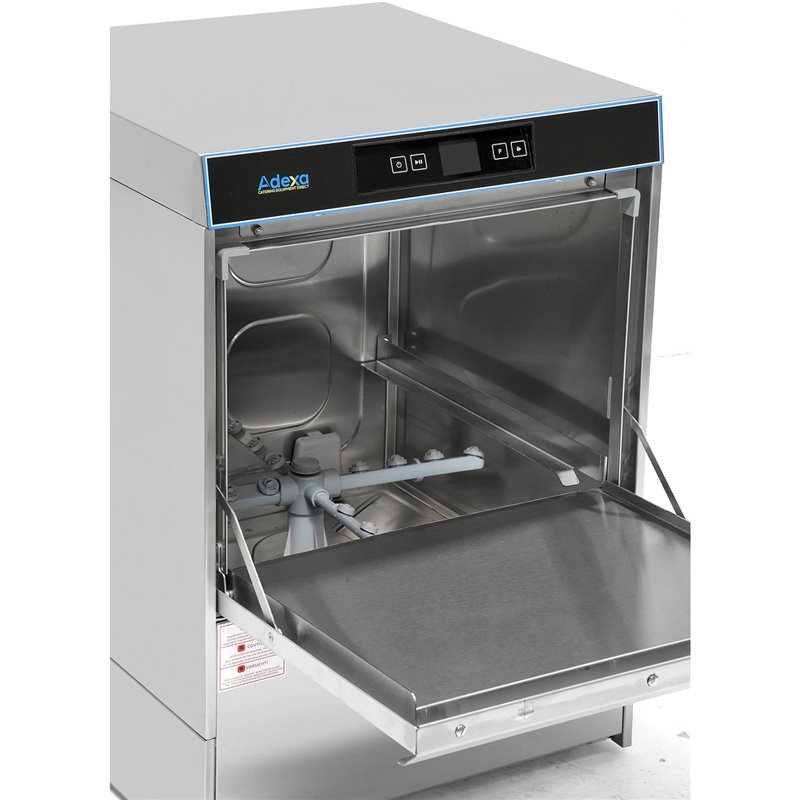

• 2 powerful wash arms for thorough, even cleaning

• Built-in detergent and rinse aid pumps for optimal wash results

• Wash cycle continues when flap is closed, improving efficiency

• Compact, space-saving footprint for professional kitchens

• Manual control panel for simple, reliable operation

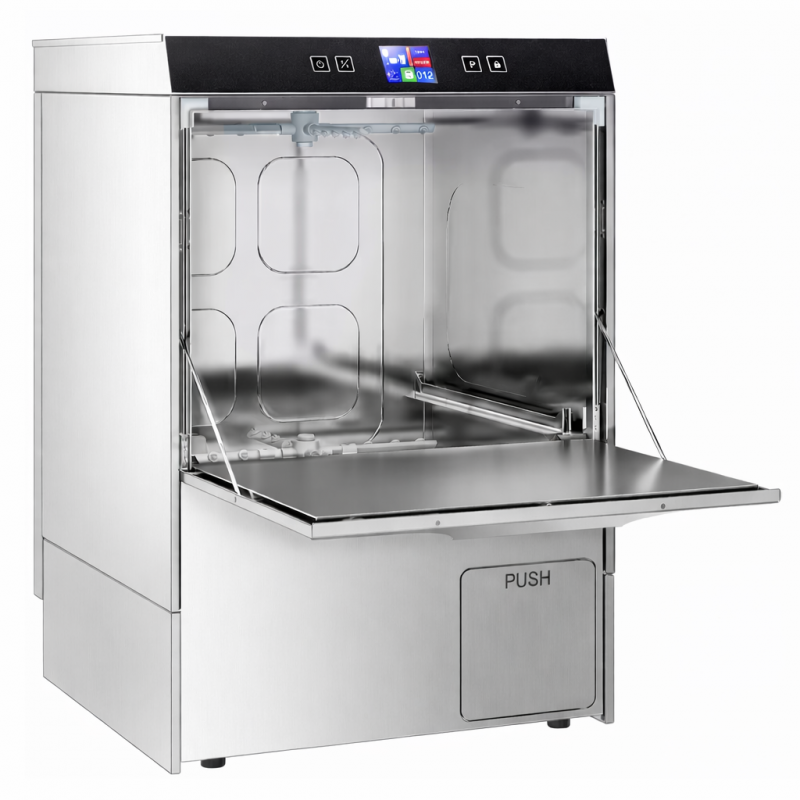

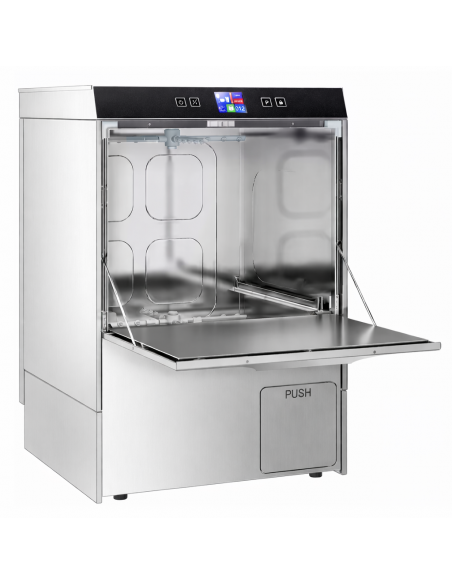

• Maintenance flap allows easy access to inlet hoses

• High washing performance with excellent cleaning results

• 3 wash programmes to suit different loads and soil levels

Build Quality

• Body manufactured from high-quality stainless steel

• Rust-proof stainless steel radiator

• Extremely robust and durable construction for commercial use

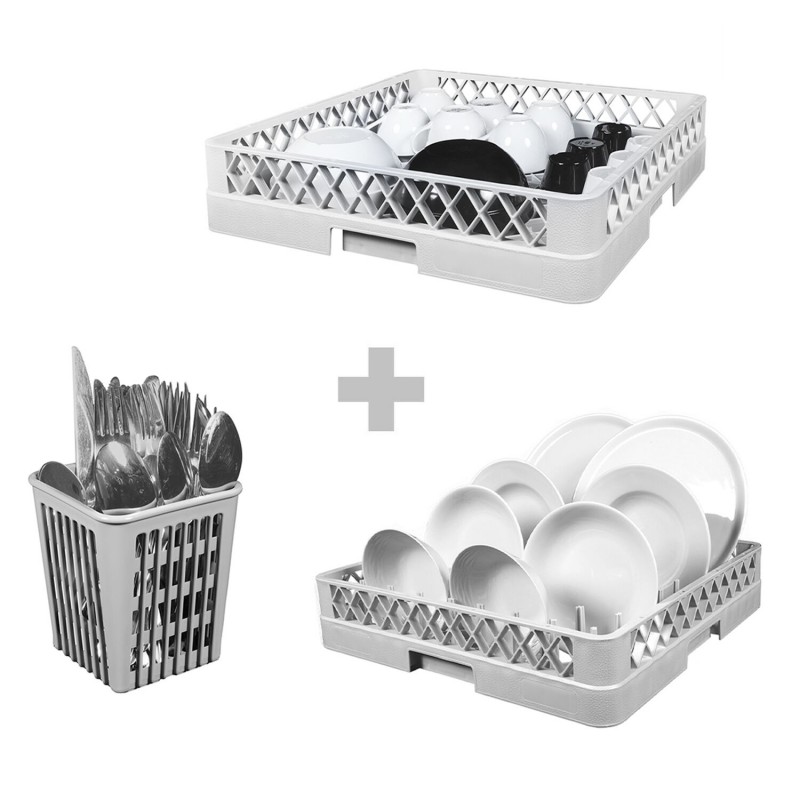

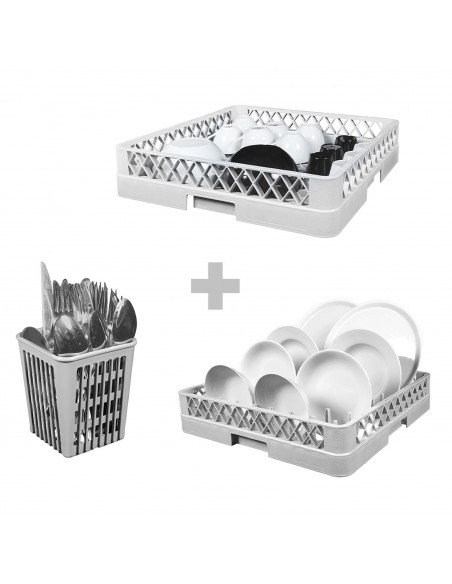

Included Accessories

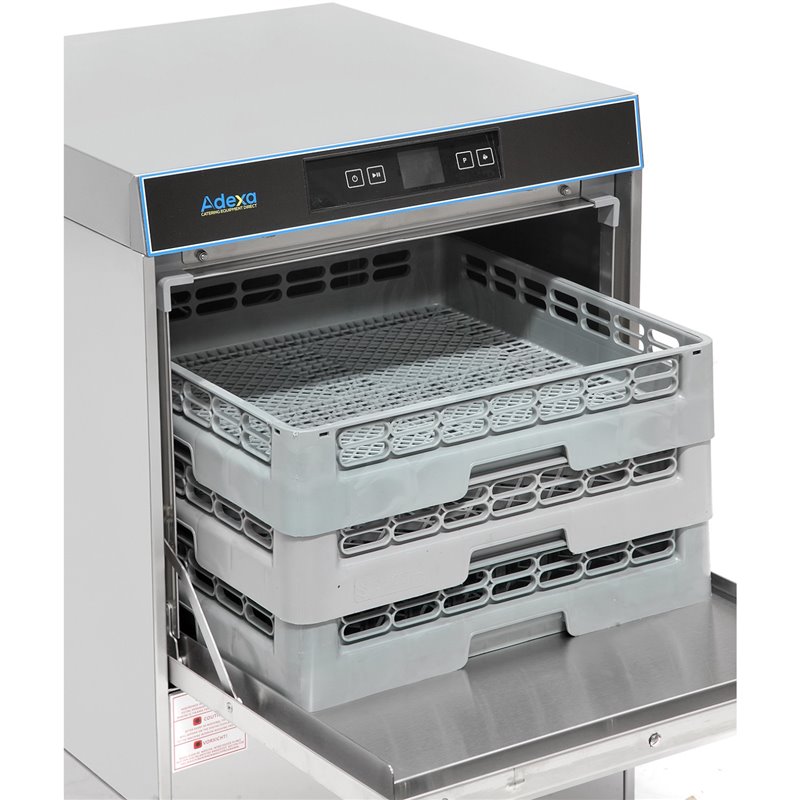

• 1 × Universal basket

• 1 × Dish rack

• 1 × Cutlery basket

Compliance & Standards

• Manufactured in accordance with relevant hygiene and safety standards

• CE marked to confirm compliance with EU regulatory requirements

• Materials comply with European food safety standards

Installation & Usage Notes

• Appliance must be connected as a single electrical group for safety

• Supply voltage details can be found in the user manual

• Hot water connection recommended for best performance

• Suitable for chlorine-free cleaners only

• For smooth rinsing, descaling is recommended using a connected descaler (Art. No. ENS12)

• If using an upstream descaler, the cartridge must be regenerated after 1,500–2,000 litres, depending on water hardness

Technical Specifications

Dimensions

• Width: 590 mm

• Depth: 700 mm

• Height: 820 mm

Basket Size

• 500 × 500 mm

Performance

• Maximum plate height: 320 mm

• Wash temperature: 55°C

• Rinse temperature: 80–85°C

• Rinse cycles: 90 / 120 / 180 seconds

• Output: Up to 500 plates per hour

• Water consumption: 2.5 litres per cycle

Electrical Connection

• Power: 3.55 kW

• Voltage: 220V

• Phase: 1N / PE

• Frequency: 50 Hz

Delivery Information

• Shipping method: Haulage

• Delivered: Fully assembled

• Net weight: 72 kg

• Warranty : 12 months spare parts only
