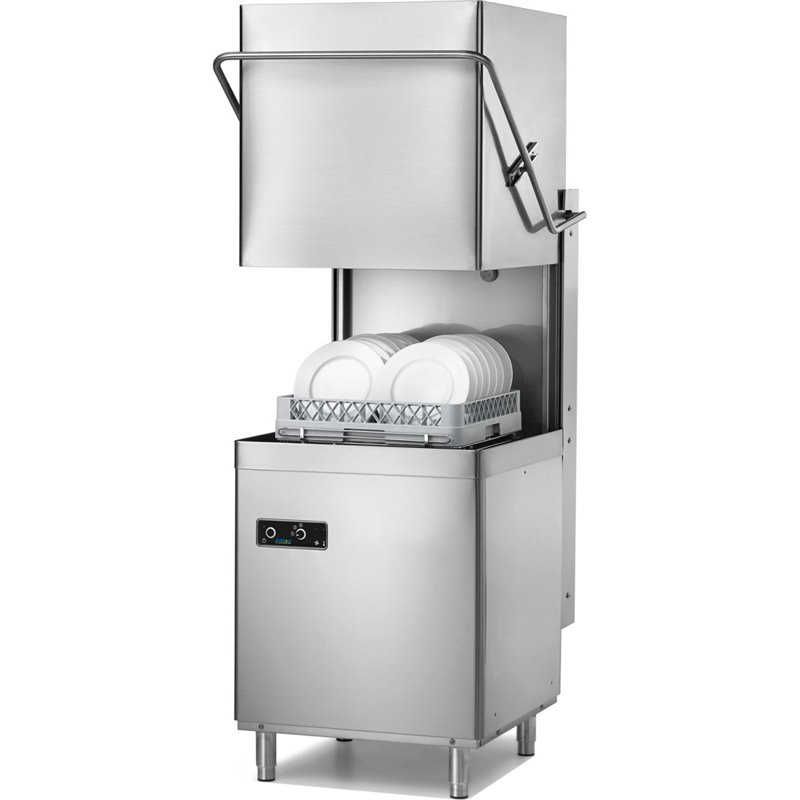

Passthrough Dishwasher Premium 500mm basket 48 baskets/hour Built-in water softener Break tank Drain pump Detergent dosing pump
DA-ADX10TBWS
Out-of-Stock
£2,034.99 Excl. VAT
£2,441.99
Inc. VAT
Lease from £14.09 per week
Easy Lease Finance from £500 to £100,000
7.5kw 3 Phase
This premium hood type dishwashers offers outstanding professional performance and exceptional economical operation for restaurants, hotels and other catering businesses. This item includes a
break tank as standard. The break tank is a separate reservoir with an air
overflow that acts as a barrier between any contaminated water and your fresh
water supply. The break tank means that no contaminated water, food debris or
bacteria can ever enter your freshwater supply, ensuring maximum hygiene for
clean glassware and crockery. A break tank is a
requirement for all high-risk businesses under the UK Water Board regulations.
That typically includes Nurseries, all Schools, Hospitals, and Care Homes.
- Single-skinned body and double skin doors.
- Made in Italy
- Power supply: 400V / 3N / 50Hz
- With Built-in water softener
- With break tank

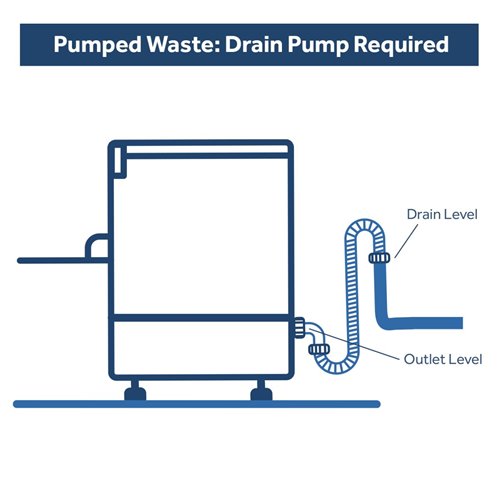

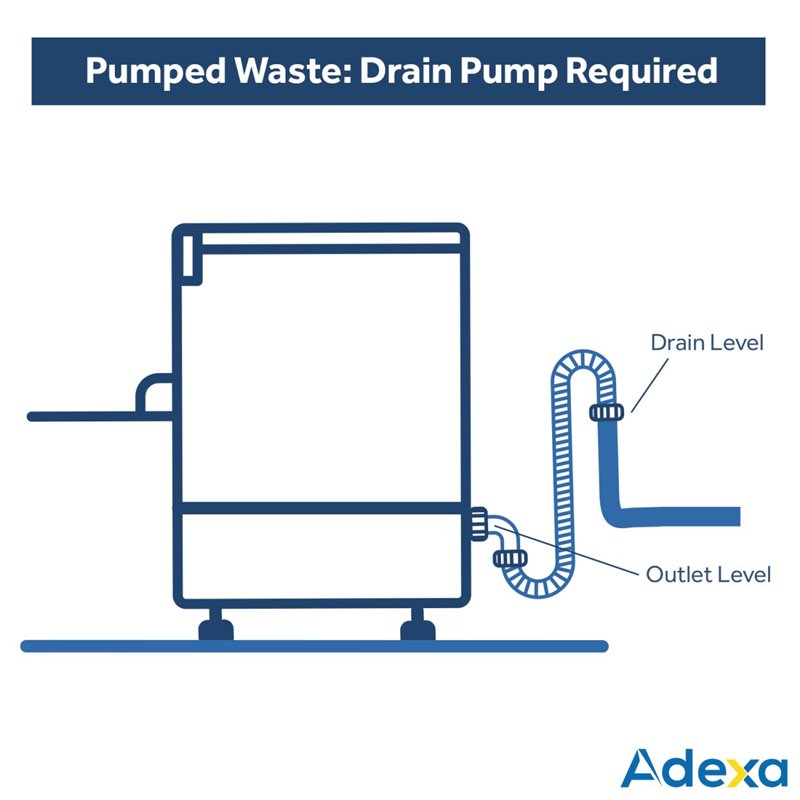

- With drain pump
- With detergent dosing pump
- Easy-clean-filter system.
- Two stainless-steel wash arms and two rinse arms of composite material, independent and rotary, removable without tools.
- Wash tank inclined to filters.
- Self-draining inclined wash pump.
- Tank and hood made of stainless-steel AISI 304.
- Adjustable rinse aid dosing unit.
- Auto-start hood.
- Electromechanical control panel.
- Washing Cycle 1: 75 sec (48 baskets/h)
- Washing Cycle 2: 120 sec (30 baskets/h)
- Washing Cycle 3: 180 sec (20 baskets/h)
- Basket size: 500 x 500 mm
- Wash pump power: 1.1 kW
- Wash pump capacity: 503 litres/min
- Element power (tank): 3 kW
- Element power (boiler): 6 kW
- Water supply temperature: +55°C
- Water supply pressure: 200 - 400 kPa
- Water supply hardness max: min. 7 max. 12°f
- Washing temperature: +55°C
- Rinsing temperature: +85°C
- Capacity tank: 30 litres
- Capacity boiler: 7 litres
- Water consumption per cycle: 2.8 litres
- Sound emission: 69 dB(A)
- Total power: 7.1 kW
- Baskets: 1x18 plates rack, 1 universal basket, 1 cutlery rack
- Hoses (1 for each): Water connection, Drain, Transparent rinsing product
| Miscellaneous | |
| Break tank | Yes |
| Capacity (boiler) | 7 litres |
| Capacity (tank) | 30 litres |
| Noise level | 69 dB(A) |
| Water pressure (inlet) | 200 - 400 kPa |
| Included | Baskets: 1x18 plates rack, 1 universal basket, 1 cutlery rack Hoses (1 of each): Water connection, Drain, Transparent rinsing |
| Dimensions / Weight | |
| Width | 725mm |
| Depth | 885mm |
| Height | 1915mm |
| Basket Size | 500x500mm |
| Power supply | |
| Power supply | 400V / 3 phase |
| Power | 7100W |
| Power (wash pump) | 1100W |
| Power (boiler) | 6000W |
| Power (tank) | 3000W |
| Temperature | |
| Temperature (washing) | +55°C |
| Temperature (rinsing) | +85°C |
| Dishwashing | |
| Capacity (wash pump) | 503 litres/min |
| Detergent dispenser | Yes |
| Rinsing | |
| Drain pump | Yes |
| Water consumption (rinsing) | 2.8 litres |
| Warranty | |
| Warranty | 1 Year Warranty |
- Power Supply
- 400V / 3 phase
- Warranty
- 12 mth spare parts warranty
- Power
- 7100W
- Height
- 1915mm
- Width
- 725mm
- Depth
- 885mm
- Basket Size
- 500x500mm
- Break tank
- Yes
- Capacity (boiler)
- 7 litres
- Capacity (tank)
- 30 litres
- Capacity (wash pump)
- 503 litres/min
- Detergent dispenser
- Yes
- Drain pump
- Yes
- Included
- Baskets: 1x18 plates rack, 1 universal basket, 1 cutlery rack Hoses (1 of each): Water connection, Drain, Transparent rinsing
- Noise level
- 69 dB(A)
- Power (boiler)
- 6000W
- Power (tank)
- 3000W
- Power (wash pump)
- 1100W
- Temperature (rinsing)
- +85°C
- Temperature (washing)
- +55°C
- Water consumption (rinsing)
- 2.8 litres
- Water pressure (inlet)
- 200 - 400 kPa
